IZOCAM STONE WOOL

• Stone wool is made from basalt, an inorganic raw material, which is obtained domestically. It is produced through heating basalt at 1350°C - 1400°C and transforming it into fibres.
• It can be manufactured in the forms of blanket, board, pipe or loose in different size and with different technical properties, with different facing materials according to the intended use and the place of use.
• It is used for thermal insulation, sound insulation, acoustic comfort as well as fire safety.
• It is manufactured with the licence of Saint Gobain Isover, Grünzweig + Hartmann, Germany.
• It is produced in the plants that hold the ISO 9001 Quality Management System, ISO 14001 Environmental Management System, OHSAS 18001 Occupational Health & Safety Management System and ISO 50001 Energy Management System certificates provided by Bureau Veritas.
• Izocam Stone Wool products that are subject to TS EN 13162, hold the CE mark according to the Construction Products Directive (305/2011/AB).
• Izocam Stone Wool Products certified by EUCEB according to conformity of mineral wool fibres with note Q of regulation (EC) no 1272/2008.
• Its declared thermal conductivity is 0,035 ≤ λ ≤ 0,040 W/mK. (at 10°C)
• Depending on the declared thermal conductivity values, Izocam Stone Wool products are in the thermal conductivity groups of 035 and 040.
• Water vapour diffusion resistance factor μ = 1.
• Depending on the product type, the temperature of use is between -50/+650°C. Melting temperature > 1000°C.
• Even if it is subjected to heat and humidity, it stays dimensionally stable.
• It is rot proof and resistant to aging. It does not corrode, decompose, or allow mould formation. They are resistant against insects and microorganisms.
• It is not hygroscopic and capillary.
• Unfaced stone wool products are classified as “A1” group non-combustible materials with respect to TS EN 13501-1...
• İzocam Taşyünü (Stone Wool) which has CE and TSE certificates also has EUCEB certificate. According to EUCEB (European Certification Board for mineral wool products) 1272/2008 /EC numbered European Directive, İzocam Taşyünü (Stone Wool) is bio-degradable and is not classified as carcinogenic.

1.FLAT ROOF BOARD

Flat Roof Board is stone wool board which is manufactured either unfaced for both faces or coated with glass tissue reinforced bitumen on one face. They are utilized for the thermal insulation, sound insulation and fire safety of all kinds of metal and timber roofs of all inclinations, of accessible or inaccessible conventional flat roofs.

Application Area

• Izocam Stone Wool Flat Roof Boards are used for thermal insulation, sound insulation and fire safety purposes under waterproofing.
• Inaccessible Flat Roof Applications: One layer of nylon cover is laid on corrugated metal roofing sheet as a vapour barrier.
• It is overlapped at the seams by 10 cm. and adhered to the surface.
• According to thermal insulation thickness, one or two layers of Izocam Stone Wool Flat Roof Board are laid on vapour barrier layer by fastening to the corrugated metal cover with anchors which have la
• After that, Izocam Stone Wool Bituminous Flat Roof Boards are laid broadly.
• It is recommended to alternate board seams when two-layer application is preferred.
• On top of that, waterproofing membrane (bituminous membrane, PVC, tpo, etc.) is applied.
• If there is any concrete or autoclaved aerated (AAC) roof panels, vapour barrier membranes are spread on and adhered to them.
• On top of that, Izocam Stone Wool Bituminous Flat Roof Boards are laid broadly and are fastened with anchor with wide washers.
• Then waterproofing cover is applied on top.
• Then vapour barrier membrane is placed on and adhered to it.
• Waterproofing cover is applied on top and a layer of felt is laid on.
• Accessible Flat Roof Applications: Levelling concrete is applied on concrete or AAC roof panels.

2.FACADE BOARD

Izocam Facade Board is a stone wool board either unfaced or with only one side faced with aluminium foil or black glass tissue. It is utilized at curtain wall systems, under the glass, granite, marble, and aluminium wall cladding for thermal insulation, sound insulation and fire safety purposes.

Application Area

• The boards can be placed in between the structural profiles fastened to the concrete surface by anchor members or they can also be installed to the facade wall by means of anchors.
• For prefabricated panel as well, the boards are placed in to the panels at the plant and then they are installed to the concrete surfaces as ready-to-use elements at the construction site.

3.MANTO STONE WOOL R+

It is an unfaced stone wool boards that is produced specially with respect to TS EN 13500 standards. It is utilized at external thermal insulation composite systems for thermal insulation, sound insulation and fire safety purposes.

• First, the surface to be used in the application should be checked to ensure that it is smooth and dry.
• If the surface is rough and with scrapes it should be cleaned by brushing.
• Unevenness, major defects, and cracks should be repaired by means of plaster.
• The boards can be adhered to the surface using cement based fixing mortar by different methods.
• The boards should be laid down without any gap side by side on the wall surface shortly after spreading fixing mortar over the boards.
• The adhesive should not be spread near the edges of the board in order to prevent the adhesive getting into the joints.
• The boards are laid down in an alternating pattern at the facades and the corners.
• When the fixing mortar is completely dry (approximately after 24 hours) the anchoring process can be started. Special insulation fastening anchors are used which are chosen with respect to the wall pr.
• Tiled surfaces or surfaces with old plaster are not suitable for anchoring.
• After anchoring process, reinforced layer is formed.
• Cement based undercoat plaster is applied to the surface by trowel.
• Afterwards, an alkali resistant, glass fibre-based reinforcement mesh is placed on top by trowel in such a manner that the edges are overlapped by 10 cm.
• Consequently, second coat plaster is applied on the mesh and the reinforced layer comes to an end. When the reinforced layer is completely dry; permeable, solvent-free decorative cladding material wit.
• Exterior cladding thickness and the quantity to be applied depend on the plaster type. Different surface forms can be achieved on the finishing plaster by different polishing methods.
• This application is correct in terms of that it removes thermal bridges by insulating wall surfaces as well as it protects the building from atmospheric conditions and prevents physical changes which.

4.MANTO STONE WOOL

It is an unfaced stone wool boards that is produced specially with respect to TS EN 13500 standards. It is utilized at external thermal insulation composite systems for thermal insulation, sound insulation and fire safety purposes.

Application Area

• First of all, the surface to be used in the application should be checked to ensure that it is smooth and dry.
• If the surface is rough and with scrapes it should be cleaned by brushing.
• Unevenness, major defects and cracks should be repaired by means of plaster.
• The boards can be adhered to the surface using cement based fixing mortar by different methods.
• The boards should be laid down without any gap side by side on the wall surface shortly after spreading fixing mortar over the boards.
• The adhesive should not be spread near the edges of the board in order to prevent the adhesive getting into the joints.
• The boards are laid down in an alternating pattern at the facades and the corners. When the fixing mortar is completely dry (approximately after 24 hours) the anchoring process can be started.
• Special insulation fastening anchors are used which are chosen with respect to the wall properties.
• Tiled surfaces or surfaces with old plaster are not suitable for anchoring.

5.STONE WOOL PARTITION WALL BOARD

It is a stone wool board used for fire safe thermal and sound insulation of lightweight partition walls, stairwells and elevator shafts, adjacent walls, inner surfaces of exterior walls.

Application Area

• Izocam Stone Wool Partition Wall Board is placed into the timber or metal construction.
• It is used for thermal and sound insulation and fire safety especially when it is applied at the partition walls of the office buildings.
• Depending on the application space, gypsum boards are fastened on the side facing the interior or on both sides by profiles.
• It is recommended to apply rubber tapes (Izocamtape) to the construction especially for the sound insulation applications in order to avoid sound bridges.

6.FLOATING FLOOR BOARD

It is a stone wool board that is used for thermal, sound and vibration insulation of the floors on the grade, for the floors in between flats, under all kinds of the vibrating equipment.

Application Area

• Izocam Floating Floor Board that is manufactured to be used under floating screeding.
• High compressive strength makes them suitable to be used for thermal, sound and vibration insulation of floors under all types of live loads.
• Before the concrete floor on grade is laid, waterproofing against ground water and damp is applied for the floor above ground.

7.INDUSTRIAL BOARD

It is a stone wool board that is used for thermal insulation and fire safety of industrial plants, process equipment, steel construction buildings.

8.STONE WOOL PREFABRICATED PIPE

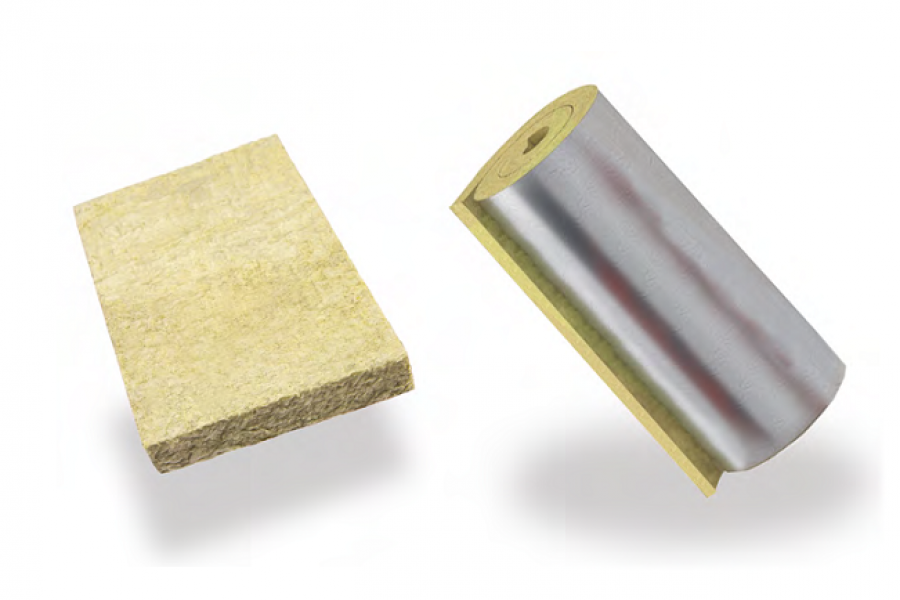

It is a pipe unfaced or faced with aluminium foil and manufactured out of stone wool with high unit weight. It is used for the thermal insulation of industrial pipes of temperatures over 250 ˚C, for vibration and sound insulation of pressurized pipes and against frost in pipes.

Application Area

• Appropriate Stone Wool Prefabricated Pipe according to nominal diameter of the pipeline to be used is chosen. It is placed by parting cut line.
• The application is completed so that no gap is left between the joints. Unfaced pipes are coated with bituminous emulsion or bituminous membranes, galvanized or aluminium jacket.

9.INDUSTRIAL BLANKET

It is a stone wool blanket that is used for thermal insulation and fire safety of industrial plants, process equipment, large diameter pipes.

Application Area

• Care should be taken to ensure that the joints fit properly, and no gap is left at the joints. During the application on large surfaces, the blankets should be impaled over welded pins of 5-6 in number per square meter.
• There are three different types of industrial blankets available as 650, 700 and 750 with different technical properties.
