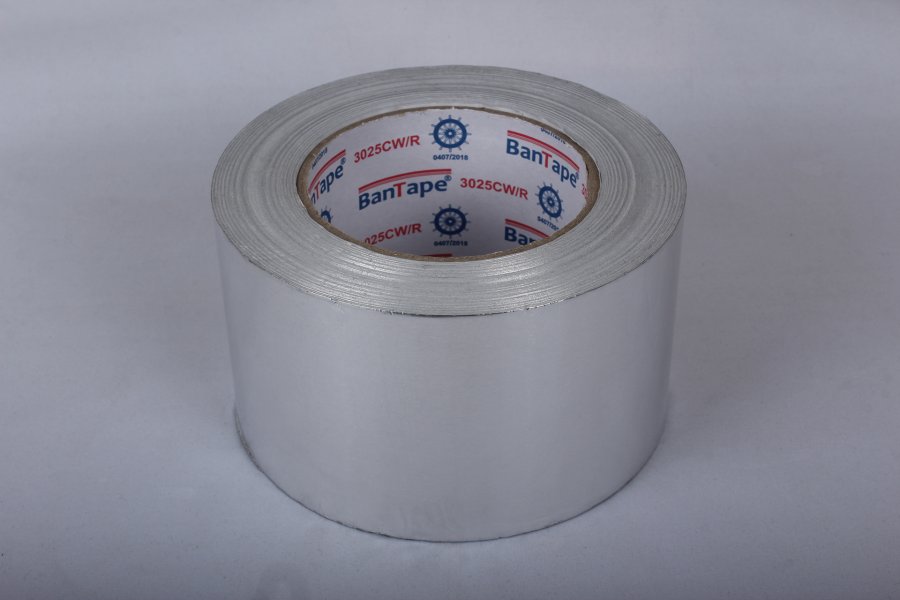

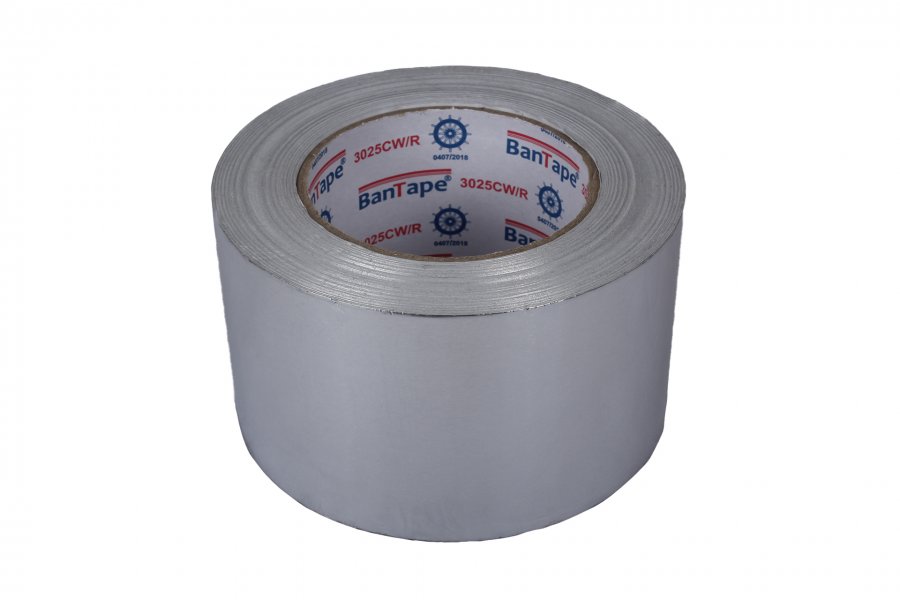

BANTAPE 3025CW/R ALUMINIUM FOIL TAPE

DESCRIPTION

BanTape® 3025 CW/R nominal 30 micron (1.2 mil) high tensile strength aluminium foil backing, combined with a cold weather flame retardant acrylic adhesive, protected by an easy-release silicone release paper. The workable foil applies easily to both fibrious and sheet metal ducts and conforms to irregular surfaces.

BanTape® 3025 CW/R excels in demanding temperature and humidity applications and provides superior performance and durability over a wide range of environmental conditions.

FEATURES

•  Aluminium backing provides excellent reflection of both heat and light
•  Cold weather adhesive with moderate adhesion offers good sealing and bonding on
•  Foil-scrim-kraft facing joints and seams in HVAC ductwork application
•  Good aging resistance both indoors and outdoors
•  Low moisture vapour transmission rate offers excellent sealing and patching performance
•  IMO Resolution MSC 61(67) Annex I Part 5 and Annex 2 IMO Resolution MSC 61(67) Annex 1 Part 2 and Annex 2 UL 723 Listed (Flame/Smoke Rating)

PRODUCT USE

HVAC industry for joining and sealing Foil-Scrim-Kraft facing laminated fiberglass blanket/duct board joints and seams, joining and sealing flexible air duct seams and connections. General purpose holding, patching, sealing and masking applications - indoors and outdoors.

PRODUCT FORM & SIZE AVAILABLE

Cut Roll: 75mm(3") / 100mm(4")

Log Roll: 1200mm x 45m/50m

Jumbo Roll: 1200mm x 1000mm/1200mm/1350mm

Important Note

1. The data above are typical values only and should not be used for specification purpose.

2. Tolerance: Weight and thickness: ±10%; Width: ±3mm; Length: Cut Roll ±0.3m; Jumbo Roll ±0.5%

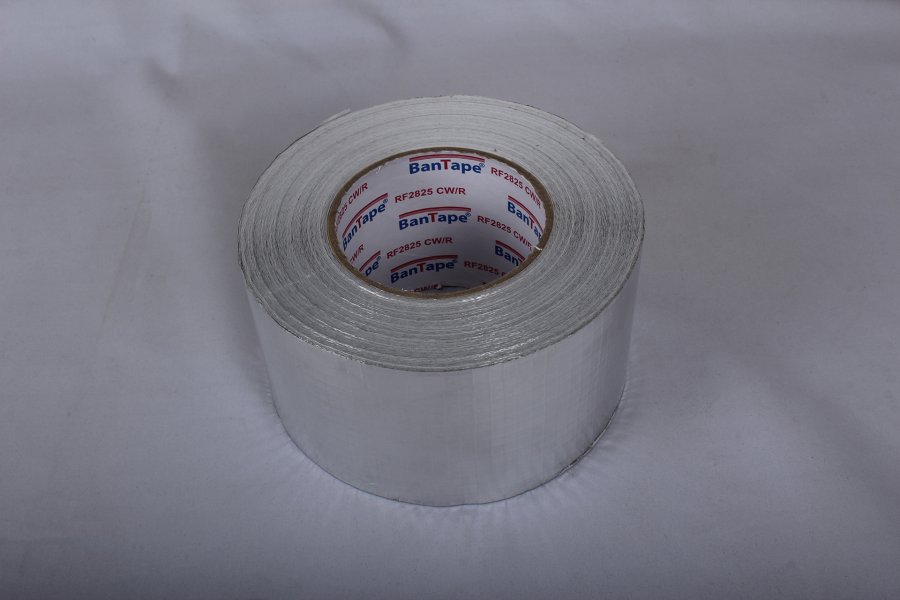

BANTAPE RF2825CW/R REINFORCED ALUMINIUM TAPE

DESCRIPTION

BanTape® RF2825 CW/R Foil-Scrim backing (Foil: 28u / 2-way scrim 5x5 mm), combined with a transparent high performance solvent acrylic adhesive, protected by an easy-release silicone release paper.

The workable foil applies easily to both fibrous and sheet metal ducts and conforms to irregular surfaces.

BanTape® RF2825 CW/R excels in demanding temperature and humidity applications and provides superior performance and durability over a wide range of environmental conditions.

FEATURES

•  Foil-Scrim backing provides excellent reflec on of both heat and light
•  High quality adhesive with super strong adhesion and holding power offers reliable and durable Foil-Scrim Facing joints and seams sealing in HVAC ductwork application
•  Good ageing resistance both indoors and outdoors
•  Low moisture vapour transmission rate makes BanTape® RF2825 CW/R an excellent vapour barrier
•  Service Temperature range from -30 ~ +120°C (-22 ~ +248 °F).

TYPICAL APPLICATIONS

HVAC industry for joining and sealing foil-scrim facing laminated fiberglass blanket/duct board/ pipe section joints and seams; joining and sealing flexible air duct seams and connections. May also be used for other industrial uses requiring a tape with these characteristics and benefits.

PRODUCT USE

It is essential that the user evaluate the BanTape® RF2825 CW/R product to determine whether it is fit for a particular purpose and user’s method of application. Good results will be obtained when applied to a clean, dry surface with a suitable pressure on BanTape® RF2825 CW/R products between +10 ~ +40 °C (+50~ +105 °F).

Surface Preparation

It is essential, as with all pressure-sensitive tapes, that the surface to which the tape is applied must be clean, dry, free of grease, oil or other contaminants.

Storage & Shelf Life

18 months when stored at 21 °C ( 70 °F ) / 50% relative humidity out of direct sunlight.

PRODUCT FORM & SIZE AVAILABLE

Cut Roll : 75mm (3") / 100mm (4")

Log Roll : 1200mm x 45 / 50m

Jumbo Roll : 1200mm x 1000m / 1200m / 1350m

Important Note

1. The data above are typical values only, and should not be used for specifications purpose.

2. Tolerance: Weight and Thickness: ±10%; Width: ±3mm; Length: Cut Roll: ±0.3m, Jumbo Roll ±0.5%

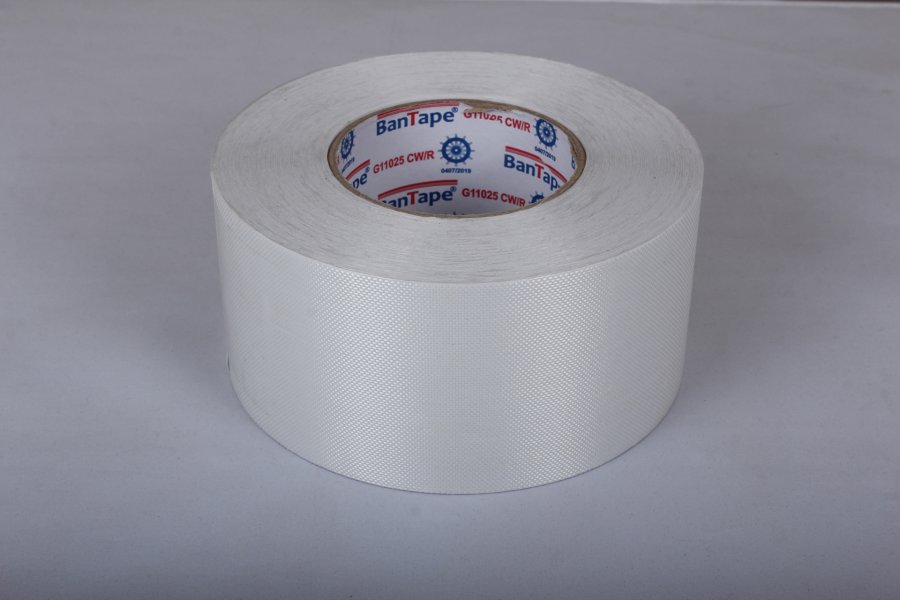

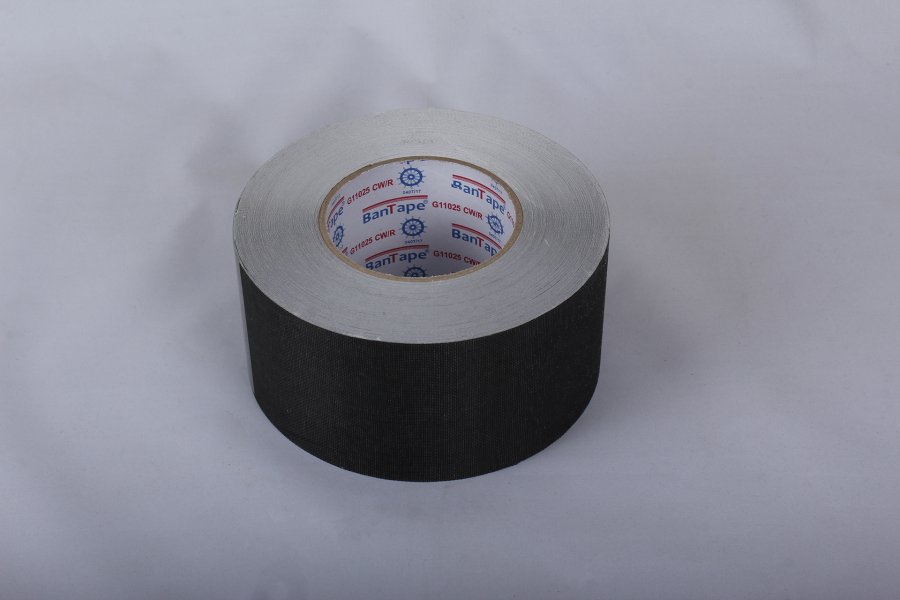

BANTAPE G11025CW/R GLASS CLOTH TAPE

FEATURES

•  Glass Cloth backing provides excellent reflection heat.
•  High quality adhesive with super strong adhesion and holding power offers reliable and durable Glass Cloth Facing joints and seams sealing in marine and industrial thermal insulation application
•  Good aging resistance both indoors and outdoors
•  Low moisture vapour transmission rate offers excellent sealing and patching performance
•  IMO Resolution MSC 61(67) Annex 1 Part 5 and Annex 2 IMO Resolution MSC 61(67) Annex 1 Part 2 and Annex 2

DESCRIPTION

BanTape® G11025 CW/R Glass Cloth backing (8x8 Mesh, 110 GSM Glass Cloth), combined with a high performance flame retardant cold weather solvent acrylic adhesive, protected by and easy-release silicone release paper.

TYPICAL APPLICATIONS

HVAC industry for joining and sealing Foil-Scrim-Kraft facing laminated fiberglass blanket / duct board joints and seams; joining and sealing flexible air duct seams and connections. General purpose holding, patching, sealing and masking applications - indoors and outdoors

PRODUCT USE

It is essential that the user evaluate the BanTape® G11025 CW/R Glass Cloth Tape product to determine whether it is fit for a particular purpose and user's method of application. Good results will be obtained when applied to a clean, dry surface with a suitable pressure on BanTape® G11025 CW/R Glass Cloth Tape products between +10~+40°Cv
